DM800 HD - ERR01 NO CA FOUND

User avatar
elprofesor
Active Member
Active Member
Posts: 9
Joined: 06 May 2023, 22:16
Has thanked: 6 times
Been thanked: 14 times
Cyprus

DM800 HD - ERR01 NO CA FOUND

#1

Post by elprofesor »

Hello,

I flashed my dreambox DM800 HD with the openpli image ( openpli-2.1-beta-dm800-20140510.npi) and now i get the error 'ERR01 NO CA FOUND' when i boot it. It cannot go to dhcp mode so it's not accessible over network. Could you please advise what is the error and suggest any solutions?

Many thanks!
User avatar
The Founder
Administration
Administration
Posts: 5221
Joined: 31 Mar 2022, 14:41
Location: sat-forum.net
Has thanked: 9368 times
Been thanked: 1211 times
Contact:
Germany

Re: DM800 HD - ERR01 NO CA FOUND

#2

Post by The Founder »

elprofesor wrote: 06 May 2023, 22:42 Hello,

I flashed my dreambox DM800 HD with the openpli image ( openpli-2.1-beta-dm800-20140510.npi) and now i get the error 'ERR01 NO CA FOUND' when i boot it. It cannot go to dhcp mode so it's not accessible over network. Could you please advise what is the error and suggest any solutions?

Many thanks!
yes, this mini usb port, is the serial port for this receiver. you can flash through serial, a correct one image for your receiver, and recover it.

also,there was a recovery tool by yassinov, which had the bootloader for most dmm models (original and clone
User avatar
Zaam
Feed Hunter
Feed Hunter
Posts: 698
Joined: 15 May 2022, 21:37
Has thanked: 210 times
Been thanked: 127 times
Contact:
Ireland

Re: DM800 HD - ERR01 NO CA FOUND

#3

Post by Zaam »

Best tool to use is Japhar Flasher, this is a patched Dreamup.

Connect both Micro USB and ethernet cable fill out the ip ranges. and select the USB cable port.

Power off the SE then click connect in japhar flasher then power on the SE.

It should then connect and allow you to flash an image
User avatar
admin
Administration
Administration
Posts: 686
Joined: 31 Mar 2022, 11:58
Has thanked: 1439 times
Been thanked: 356 times
Contact:
Germany

Re: DM800 HD - ERR01 NO CA FOUND

#4

Post by admin »

Hi thanks for the post

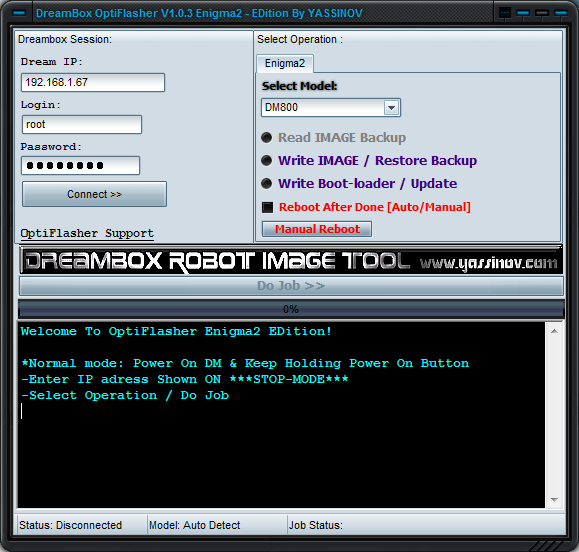

Dreambox OptiFlasher Enigma2 EDition [DM800/DM800SE]

Version 1.0.3

Main Features:


-Performing IMAGE Writing Operation [NFI]
-Performing IMAGE Backup Restore [NFI]
-Performing Boot Loader Writing/Update Operation [NFI]
-Performing Manual/Auto Reboot


Best regards , yassinov
Hope solve your problem
User avatar
elprofesor
Active Member
Active Member
Posts: 9
Joined: 06 May 2023, 22:16
Has thanked: 6 times
Been thanked: 14 times
Cyprus

Re: DM800 HD - ERR01 NO CA FOUND

#5

Post by elprofesor »

Hello,

Many thanks for the prompt reply and for your help, really appreciated! Do you also have a link for the right image for my box? My bootloader is version 84.

Best regards!
User avatar
admin
Administration
Administration
Posts: 686
Joined: 31 Mar 2022, 11:58
Has thanked: 1439 times
Been thanked: 356 times
Contact:
Germany

Re: DM800 HD - ERR01 NO CA FOUND

#6

Post by admin »

elprofesor wrote: 06 May 2023, 23:13 Hello,

Many thanks for the prompt reply and for your help, really appreciated! Do you also have a link for the right image for my box? My bootloader is version 84.

Best regards!
In Image :
- CCcam 2.2.1
- Mgcamd 1.35a
- Green Button to use plugin Dream cam Center
- New --oo--s for Emu's
DOWNLOAD
http://www.mediafire.com/?i7d551wpnsf395n
User avatar
elprofesor
Active Member
Active Member
Posts: 9
Joined: 06 May 2023, 22:16
Has thanked: 6 times
Been thanked: 14 times
Cyprus

Re: DM800 HD - ERR01 NO CA FOUND

#7

Post by elprofesor »

Dear admin,
Many thanks for sharing the image with me. I accidentally flashed the original openpli image to my cloned box and I am now unable to use Dreamup in order to reflash the box using both serial and rj45 cables. Hopefully, the OptiFlasher tool can do the job.
Best regards!
User avatar
elprofesor
Active Member
Active Member
Posts: 9
Joined: 06 May 2023, 22:16
Has thanked: 6 times
Been thanked: 14 times
Cyprus

Re: DM800 HD - ERR01 NO CA FOUND

#8

Post by elprofesor »

I will also try Japhar Flasher which Zaam suggested!
User avatar
elprofesor
Active Member
Active Member
Posts: 9
Joined: 06 May 2023, 22:16
Has thanked: 6 times
Been thanked: 14 times
Cyprus

Re: DM800 HD - ERR01 NO CA FOUND

#9

Post by elprofesor »

Hello all,

I managed to successfully flash that image but I still get the same error. Do I need to flash another image? Or do I need to flash bootloader for sim 2.01 after flashing the image? Many thanks for your help!
User avatar
elprofesor
Active Member
Active Member
Posts: 9
Joined: 06 May 2023, 22:16
Has thanked: 6 times
Been thanked: 14 times
Cyprus

Re: DM800 HD - ERR01 NO CA FOUND

#10

Post by elprofesor »

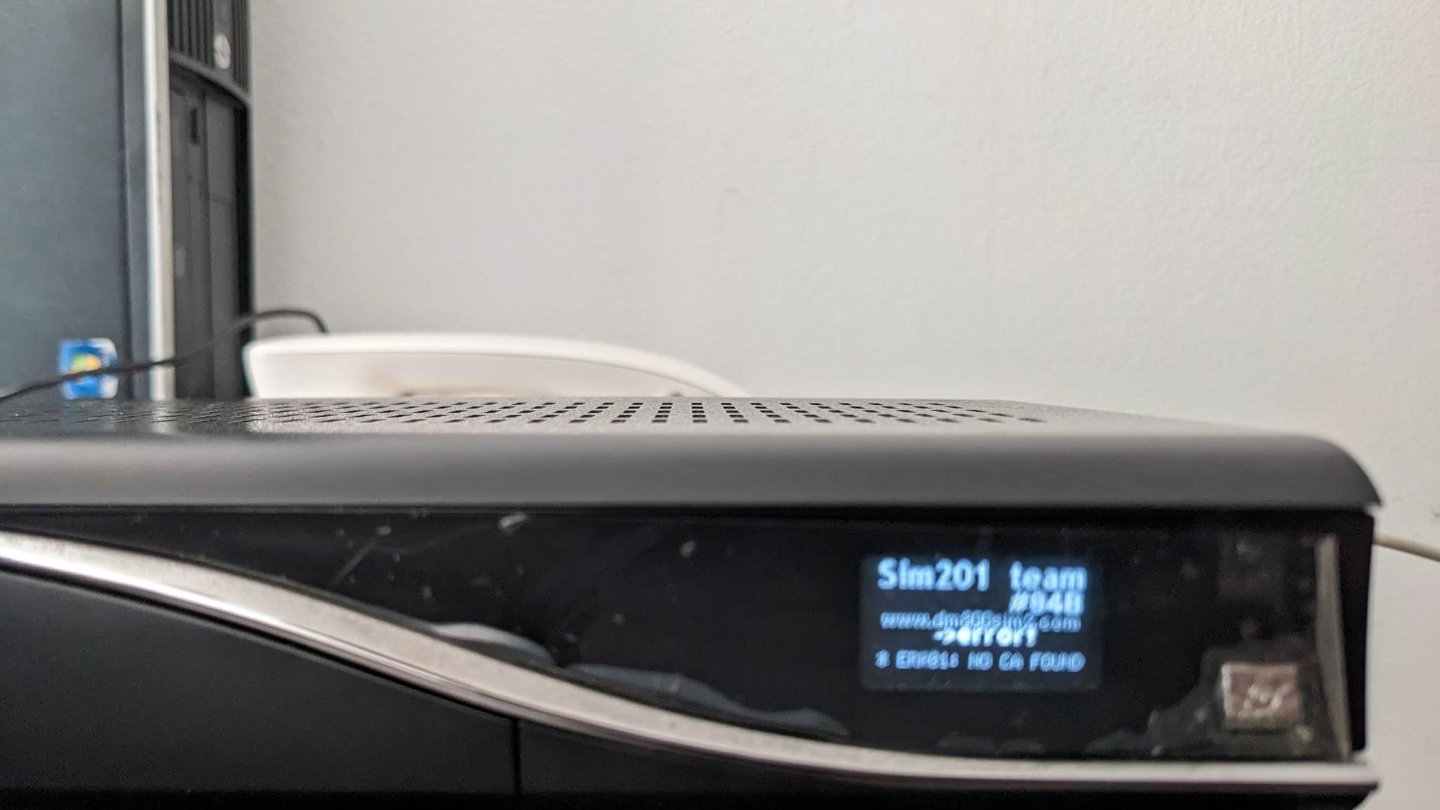

Screenshot attached.

Sim 201 team 84B
